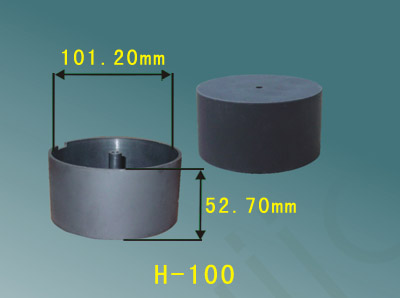

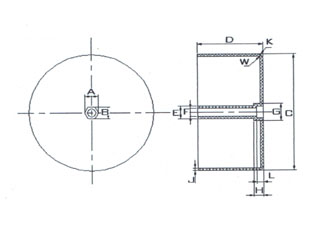

Check the main design dimensions as shown: H-100
|
圖示代碼
|
設計尺寸
|
|
A
|
11.50
|
|
B
|
10.00
|
|
C
|
101.20
|
|
D
|
52.70
|
|
E
|
9.40
|
|
F
|
6.10
|
|
G
|
13.80
|
|
H
|
6.90
|
|
J
|
1.50
|
|
K
|
R0.5
|
|
L
|
5.70
|
● Detection tool:0.02 caliper or micrometer.
● Indicate the code for inspection.
● plane does not allow a step,feel smooth and unimpeded.No obvious warping.
● no residual shape or damage,color is no different normal
● Metal-free impurities or other debris,containing metal,debris products,must be waste separation.
● no flash,burr and excess material.
● feel a strong elasticity,and not brittle.
● Selection of raw materials must meet the requirements of the EU ROHS directive,and has UL yellow card certification and fixed-point supply.
● thermal deformation temperature≥100 degrees Celsius,flame retardant UL94Vo level/0.8-3.2mm.
● other structures should meet the transformer manufacturing process as the standard.
